Conductive Fabric Description:
The fiber cloth (polyester) could has metallic after pre-treatment then metal-plating, call it Conductive Fabric. It can be divided into: Ni-plating conductive Fabric, Gold-plating conductive fabric, Carbon coated conductive fabric. Aluminum foil fiber TPU. There be plain and grid on different appearance.

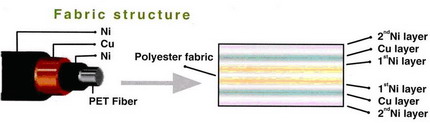

Conductive Fabric structure
The material of conductive fabric: first Ni-plating on polyester, then Cu-plating on the Ni layer, then on the Copper layer plated a passivation Ni metal. layer. The combined Cu-Ni layer with good conductivity and shielding。 The shield range: 100KHz-10GHz。
Features:
Good conductive and permeance, soft and ultra-thin EMI material
There be good adhesion in the metal layer and fabric, and also be flexibility, bendable、collapsible、coating and winding, so can tailored to different size and shape. It could be application for Post, Grounding. Good weather resistance, difficult to breakage.
Specification/Test standard
Conductive Fabric Cu/Ni -
Surface resistance: <0.08Ω∕□ ASTM-D-991
Compress permanentset: <20% ASTM-D-3574
Tear strength (horizontal/vertical): 15/11 N JIS L 1096
Operating temperature: -40℃～85℃ －
FR degree: Pass UL

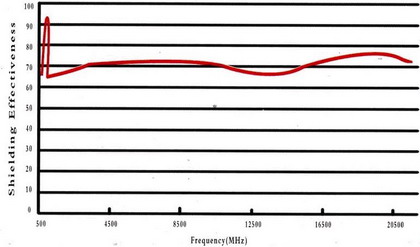

Effectiveness of shielding: 20-80dB(10MHZ-10GHZ)
Efficiency of shielding: 99.9999％
Weather-resistance: good
Applications:
Shielding for electronic equipment, ESD and grounding occasions. Multitudinousness, it widely use in communication, computer, Mobile and automatic control equipment.
Conductive fabric categories:
Conductive fabric coating conductive adhesive
Conductive fabric coating adhesive
Conductive fabric coating heat-sealed tape.
Conductive fabric coating FR conductive adhesive
Conductive fabric coating heat-sealed FR tape. |
